WAR MACHINE - Autonomous humanoid robot

Vision

War Machine is my hands-on attempt to build a compact, human-safe, AI-assisted mechatronic platform that can walk, pick, place, and interact with simple environments. The end goal is a 55 cm tall, ~6 kg biped with a 5-DOF arm, on-board compute, and a battery system that supports meaningful demo sessions (walk → pick 300 g → walk back) on a single charge. It’s a learning vehicle as much as it is a robot: mechanics, control, perception, power, safety, and systems integration all in one project.

System at a glance

• Form factor: ~55 cm overall height; modular torso (hip/abs/chest), single arm + head; target mass ~5.5–6.0 kg (latest calc).

• Actuation: Mixed-servo design. Hip driven by a high-torque servo with 2:1 reduction; knee uses an MG996R with an ~8–12:1 harmonic/gear stage; shoulder joints use MG996R with 2:1; elbow ~1.5:1; wrist direct 9 g servo.

• Available torque (post-reduction): Hip ≈ 7.8 N·m; Knee ≈ 10–12 N·m; Shoulder ≈ ~4–7.8 N·m; Elbow ≈ ~1.5 N·m.

• Compute: Raspberry Pi + microcontroller stack for hard real-time loops; sensor bus for IMU, ToF/LiDAR, camera, current/voltage, and bump sensing.

• Power: 3S 18650 pack (12–18 cells), 10–15 Ah equivalent; swappable sled; fused rails and per-group current limiting.

• Duty profile (simulated): 10 m walk ≈ ~40 s, pick 300 g, 10 m return ≈ ~40 s, total ~90 s, ~75 mAh consumed per cycle at ~3 A average.

• Runtime envelope: Standby 10–20 h; moderate 4–7 h; heavy 2.5–3.5 h (est.).

• Safety: Current limiting, soft-start, e-stop loop, joint software travel limits, “limp” mode, and staged torque ramp.

(Numbers above come from my current sizing notes and joint/battery calculations.)

Mechanical architecture

Chassis & proportions
The design locks to a 55 cm height envelope with a compact hip block and a slender abs/chest stack to concentrate mass around the CoM. Leg segments are ~25 cm each; hip block ~6.5 × 12 × 7 cm; abs ~5.5 × 12 × 8 cm (batteries live here); chest ~11 × 13 × 10 cm (compute, power distro). Arms total ~25 cm reach; head ~7 × 7 cm to house camera and pan/tilt. Materials are a mix of 3D-printed PETG/ABS, aluminum standoffs, and small steel inserts where stiffness matters.

Loads & joints
Back-of-envelope torque budgets set hip requirement ≈ 6 N·m (leg load ≈ 2.5 kg at ~0.25 m lever), so the 2:1 reduction on a 40 kg·cm class servo yields ~7.8 N·m, leaving margin for stance and push-off. Knee sees ~4 N·m required; with an ~10–12:1 stage on an MG996R we get ~10–12 N·m—comfortable for controlled gait and gentle crouch. Shoulders target light manipulation (<300 g at ~20 cm): ~0.6 N·m; with 2:1 we’re several times above that.

Gearing strategy
I’m using modest gear ratios to keep speed workable and avoid stalling. Where space permits, I prefer belt/gear combos with inexpensive harmonic-style reduction on knees. Shoulder/elbow use printed housings with brass inserts to keep backlash low.

Actuation & control

Servo ecology

• Hip pitch: 40 kg-class servo @ 2:1

• Knee: MG996R + ~8–12:1 reduction

• Shoulder (pitch/yaw/roll): MG996R @ 2:1

• Elbow: MG996R @ 1.5:1

• Wrist: 9 g servo, direct

Low-level loops
A dedicated MCU runs 1 kHz joint PID with feed-forward and gentle slew rate limits. The Pi handles state estimation (IMU fusion), gait phase, and higher-level behavior. I’m targeting simple ZMP-lite balancing plus a foot-placement planner for straight-line walking at 0.2–0.25 m/s to start.

Perception & compute

• Head: camera on 2-axis mount for visual servoing and fiducials;

• Body: 6-DoF/9-DoF IMU, ToF/LiDAR for near-field awareness, bump strips around the shins;

• Compute tiering: Pi for vision/planning/UI; MCU(s) for hard-real-time motor control; i2c/SPI bus guardians; watchdogs on both tiers.

Power, thermals, and safety

• Battery: modular 3S sled (12–18 × 18650), 10–15 Ah.

• Distribution: fused rails, buck modules for logic, isolated feeds for high-current servo groups.

• Thermals: airflow paths in chest, heat-sinking on regulators, temp telemetry.

• Safety: physical E-stop, software torque caps, joint travel limits, “limp” mode (power-down to safe stance), brownout recovery.

What the math says (so far)

• 10 m walk at ~0.25 m/s ≈ ~40 s per leg with ~6 N·m hip requirement—meets spec with 2:1 gear.

• Pick & place 300 g at 20 cm reach ≈ 0.6 N·m at shoulder—well within capacity.

• Energy per full “walk-pick-walk-place” cycle: ~75 mAh at ~3 A average.

• Heavy use runtime (continuous gait + arm work): ~2.5–3.5 h on a 10 Ah pack; moderate ~4–7 h depending on duty cycle.

These numbers give me confidence that a demo loop (walk → pick 300 g → return) is realistic without cooking the batteries or the joints.

Interaction modes

1. Autonomous demo: straight-line walk, locate bin fiducial, pick 300 g, return and place.

2. Teleop: web UI over Wi-Fi for joint jogs and waypoints (with soft limits).

3. Scripted routines: YAML “skills” (stand, wave, pick, place) chained into routines.

4. Safety first: any fault trips limp mode and waits for operator reset.

What’s built today

• Mechanical: lower-torso frame, a functional prototype arm, gear test rigs, and dimensioned drawings for the full stack; iteration fixtures for the knee reducer and shoulder cartridge.

• Electrical: early power distro board with fused rails; buck modules validated; battery sled design; bench harness for current logging.

• Software: joint PID on MCU with slew limiting; basic gait phase machine; teleop sandbox; logging pipeline.

• Design data: consolidated specs (joint torques, gear ratios, energy model), mass budget per module, and initial walking/pick-place timing.

What’s next

1. Leg v1 assembly (hip/knee/ankle), tune stance controller, and capture current vs. load curves.

2. Battery sled v1 (12-cell) and safe charge/discharge workflow; integrate live current/voltage telemetry.

3. Gait bring-up on flat ground; add foot contact sensing for phase confirmation.

4. Arm integration with pick-place skill; start simple graspers (rubberized two-finger).

5. Safety hardening: e-stop, watchdogs, and fault-tolerant limp posture.

Stretch goals

• Two-arm variant with coordinated manipulation.

• Vision-guided pick (AprilTag/fiducials) and basic obstacle avoidance.

• Voice/gesture teleop layer for fun demos.

Reflections

This project sits at the edge of my current capabilities by design. The sizing work (torque, gearing, energy, heat), the wiring discipline, and the control loops are where most of the learning lives. I’m deliberately keeping velocities and payloads modest while I prove the stack. From there, it’s iteration: stiffer joints, cleaner harnessing, and smarter gait.

Gallery / Docs (live as I build)

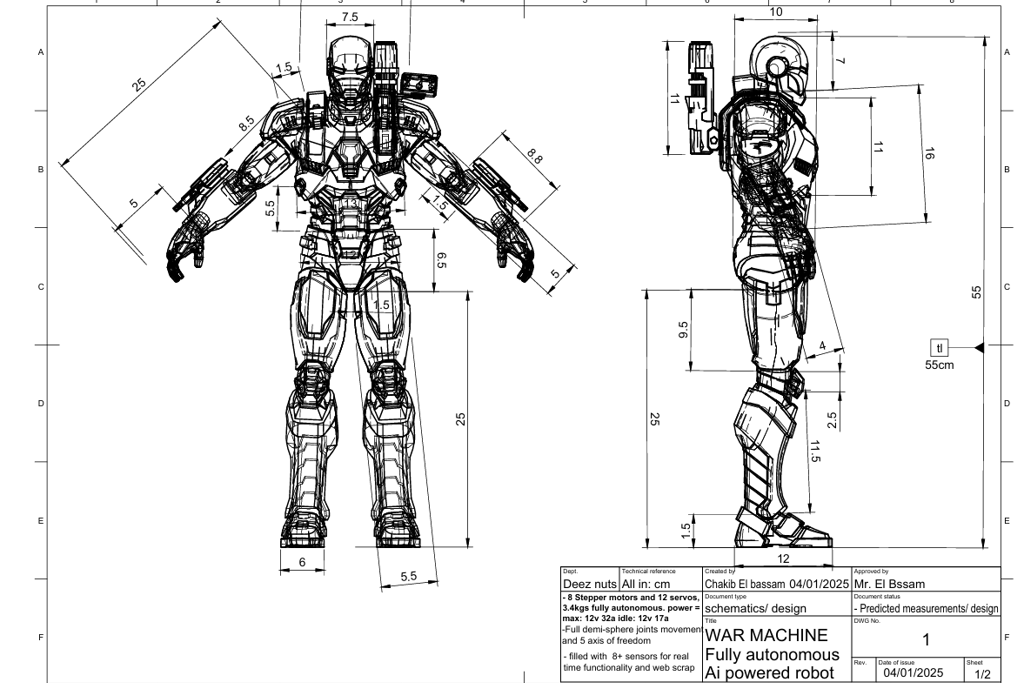

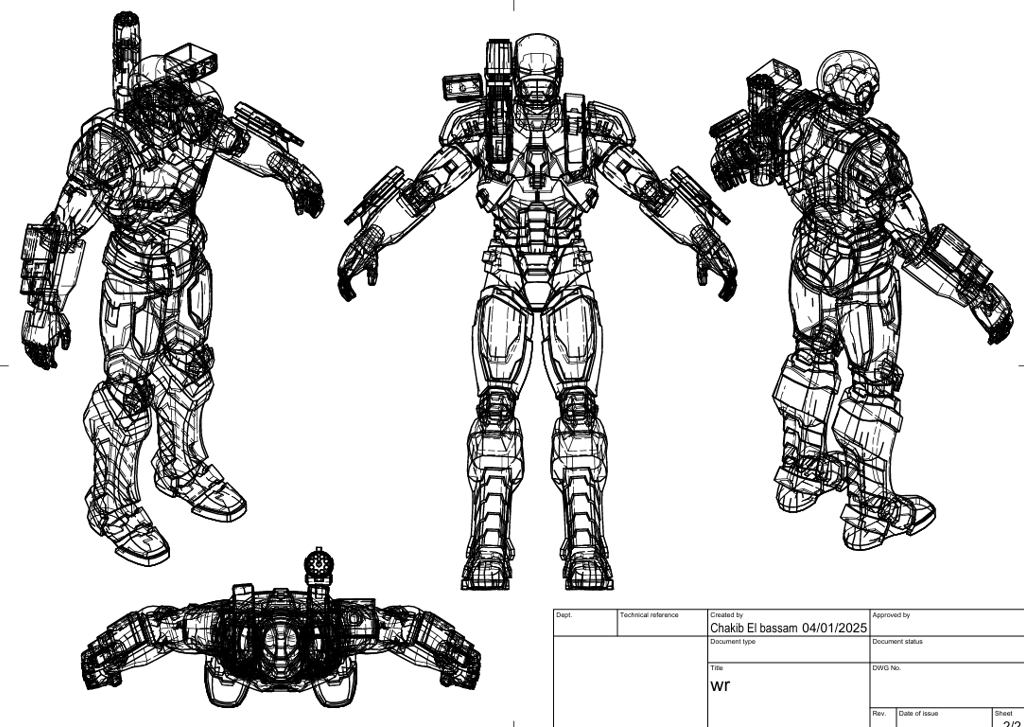

• Dimensioned drawings & envelope sketches

• Module CAD (hip block, knee reducer, shoulder cartridge)

• Power distro + battery sled

• Bench tests (current vs. load, thermal)

• Gait and pick-place video logs

If you want the gritty details (torque tables, gear ratios, battery math, and timing budgets), I’ve consolidated them into the project spec and drawings. Happy to share those alongside progress clips.
